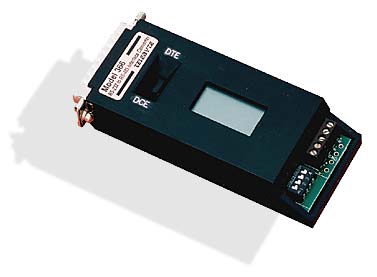

Model 366 - RS-232 to RS-485 2 Wire with LCD Display


Features
  • DataSpy« Status Display
  • Implements Low Cost LAN
  • Supports 32 Users
  • Uses Single Twisted Pair
  • External DTE/DCE Switch
  • Programmable Contention
  • Selectable Termination

Product Description

The Model 366 allows interfacing RS-232 based equipment with networks/equipment using RS-485. Transmission and reception of data to and from the network is programmable using dip switches and the RS-232 control signals RTS (Request to Send) and CTS (Clear to Send). In order to establish an orderly flow of data on the single twisted pair, the Model 366 offers three choices of data flow control. The user must select the mode which avoids the contention problem and the possible collision of data caused by two devices attempting to transmit simultaneously. In the Model 366 the RTS (Pin 4) and CTS (Pin 5) signals of the RS-232 connector are jumpered together. This combined signal, which will be referred to as RTS, is used to control the transmitter and, depending on the mode, can also control the receiver. There are four line terminating resistors, dip switch selectable to match the twisted pair being used.

The Model 366 includes Telebyte's unique patent pending DataSpy LCD display, which provides the user with important status information regarding the operation of the device. This LCD operates from less than one milli-watt of power thereby not affecting the operation of the Model 366. The LCD is extremely useful during the installation and checkout and whenever there are suspected problems. The graphic display presents the user with live status of the transmit and receive data signals, TD and RD, and control signals, CTS, RTS, DSR, DCD and DTR.


Model Description Price Product Info QTY AVAIL BUY NOW!
RS-232 to RS-485 2 Wire with LCD Display - Male Connector Specifications    Application Note
RS-232 to RS-485 2 Wire with LCD Display - Female Connector Specifications  Manual  Application Note
RS-232 to RS-485 2 Wire with LCD Display - Female Connector - 220 Volts Specifications  Manual  Application Note

Quantity discounts for five or more of these items may apply.
Discounted prices shown in Shopping Cart.

Please make a selection.
