Model 8001- DIN Rail Accessory
Assembly Instructions


The Model 8001 is supplied as a kit of parts for the user to assemble. The supplied parts include a left, long, bracket and a right, short, bracket. It should be noted that there are two types of screws, 2 short sheet metal screws and 4 longer machine screws. There are two of each screw.

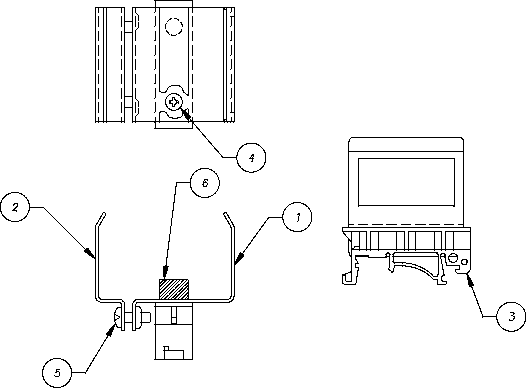

1. Using the sheet metal screws fasten the plastic DIN rail foot to the left, long, bracket as shown in the picture. Do not over tighten these screws.

2. Using the selected length machine screws and the 4 nuts assemble the two brackets together as shown in the following picture. Leave the screws loose. Peel off the protective covering from the foam strip and place the strip on the bracket as shown in the picture. The foam strip should cover the heads of the sheet metal screws that secure the plastic foot.

3. You are now ready to install the product that is to be DIN Rail mounted. With the product in place carefully tighten the two screws until the product is clamped in place. The completed assembly can now be snapped on to the DIN Rail.





1 - Base, 8001
2 - Clamp, 8001
3 - Base, DIN Rail Mount
4 - Screw, 4X1/4 Self Tap
5 - Screw, 4-40X1.25 B.H.
6 - Foam, Adhes. backed 4504

If any assistance is required please visit our  Technical Support Center.
